The MDZK series low-temperature pulsating vacuum dryer is mainly suitable for drying thermosensitive materials (Chinese herbal extracts, active substances) under low-temperature vacuum conditions.
Load the material into a drying tray, place it on a flat plate heated inside the box, and continuously dry it at low temperature under vacuum. By continuously reducing pressure and increasing pressure, the solvent is taken away by a vacuum pump (and a condensation recovery system can be added) to achieve rapid drying.

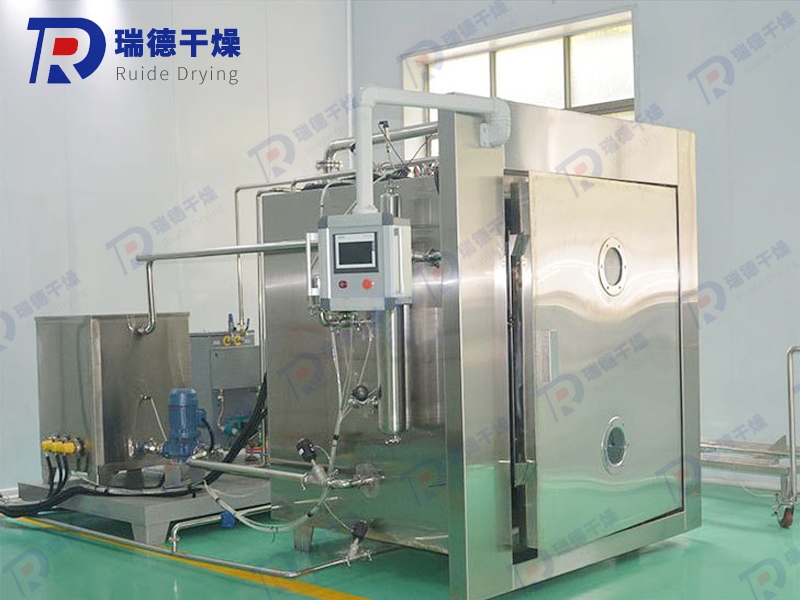

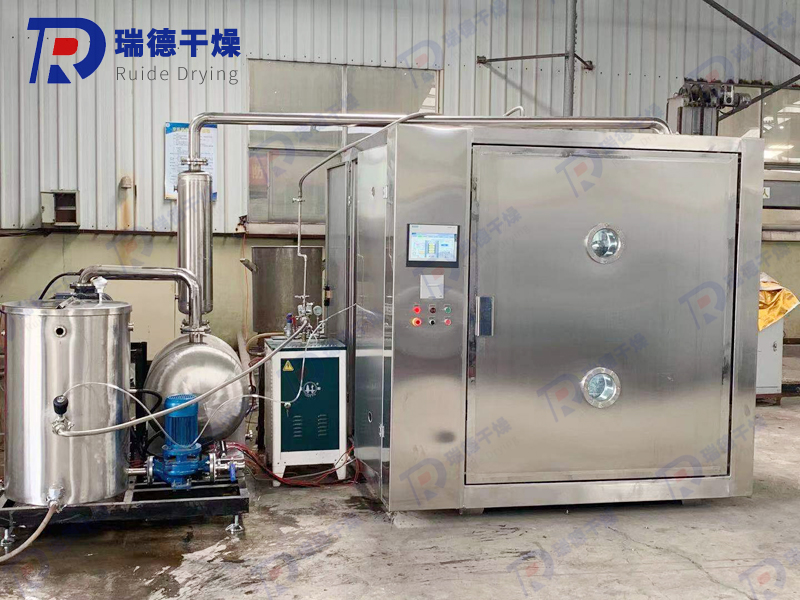

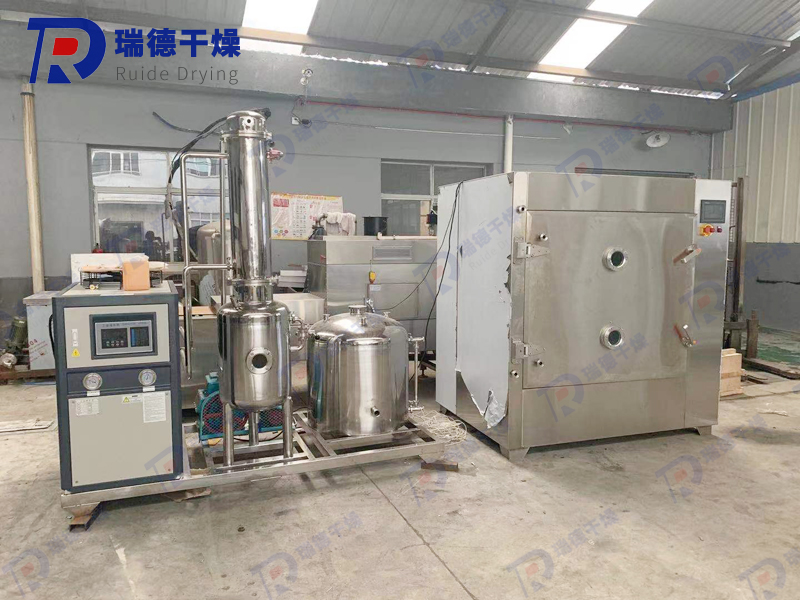

It mainly consists of four systems: drying host, pulsation system, vacuum system, and control system.
1. The pulsating vacuum dryer has a small footprint;
2. Fast drying speed, reducing drying time by nearly 50% compared to ordinary vacuum drying;
3. Pulse vacuum dryer dries evenly;
4. PLC automatic control, automatically completes the drying process according to the properties of the material.
5. Low temperature, integrated heating of the box, uniform temperature.
6. The foam breaking system quickly solves the foaming phenomenon of traditional Chinese medicine extract.
7. Automatic pulse system, timed blowback, controls the vacuum degree inside the box.
8. Large heating area and fast drying rate.
9. PLC fully automatic control system, and can automatically record working temperature pulsation frequency, etc.
The low-temperature pulse vacuum dryer is a highly efficient and energy-saving product developed by Changzhou Ruide Drying Engineering Technology Co., Ltd. based on market demand, years of industry experience, multiple innovative technologies, and new research and development. It mainly solves bottleneck problems such as long soaking and drying cycles of traditional Chinese medicine, difficult material collection, and unreliable material quality.
Low temperature pulse vacuum dryer is a vacuum box type drying device, belonging to static vacuum drying equipment. It works under negative pressure conditions and can be widely used for drying materials in various industries, especially for drying heat sensitive materials or materials with high viscosity and harsh oxygen-containing working conditions. This equipment uses (low-temperature) hot water as the exchange medium, adopts the principle of "high vacuum" laminar flow drying, and uses bubble breaking technology to solve the bottlenecks of material foaming and overflow, coking and carbonization, oxidation and degradation, and long drying cycle in the drying process of traditional Chinese medicine extracts for many years. It is an efficient, energy-saving and low-temperature drying method. At the same time, it can complete online cleaning or soaking cleaning functions, material input and output functions, automatic cooling function inside the box, and automatic feeding function.
1) Solved the problem of low drying efficiency of traditional Chinese medicine extracts, and this equipment technology improves efficiency by more than 2-10 times compared to traditional equipment;
2) Solved the practical production and drying process problems of materials, with stable equipment production process and controllable technology;
3) Solved the problem of sterilization and drying of materials in the same container. Save processes, space, equipment investment, energy consumption, and labor;
4) Solved the problem of difficult equipment cleaning, equipped with online cleaning function, the internal drying car is designed to be movable, the board layer can be separated separately, and equipped with an external car, making cleaning more convenient;
5) Solved the drying dilemma of small and medium-sized batches and multiple varieties in production, making it more flexible in actual production;
6) Solved the carbonization and coking phenomenon during the material drying process, ensuring that the effective components of the material are not degraded, greatly improving the quality of the product;
7) Solved the problem of uneven drying of materials that require secondary drying, resulting in inconsistent color and shape differences of the materials;
8) Solved the looseness of the material after drying, resulting in a honeycomb like appearance of the material, ensuring good product dissolution effect;
9) Solved the problems of difficult material collection, knocking deformation, low yield, and excessive metal ions in the baking tray, and used FDA compliant materials as the base.
10) Solved the problems of foaming and material running during material drying, using new technology for detection and innovative techniques for processing;
11) Solved the problems of high energy consumption and long drying time of equipment, reducing costs by more than 80% compared to traditional equipment;
12) The product has the functions of material input and output, automatic feeding, and automatic cooling inside the box, greatly reducing labor consumption and intensity, shortening operation time and cooling time;
