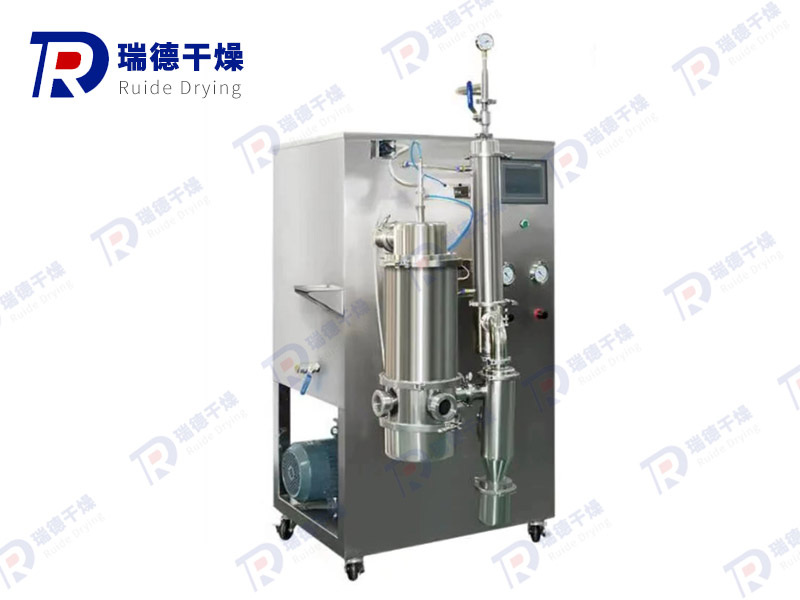

Experimental spray dryer (small spray dryer) is mainly applicable to universities, research institutes and laboratories of food, medicine and chemical enterprises to produce micro particle powder, and is widely applicable to all solutions such as emulsion and suspension. Suitable for drying heat sensitive materials such as biological products, biopesticides, enzyme preparations, etc. Because the sprayed material only experiences high temperature and instant heating when sprayed into a mist, these active materials maintain their active ingredients unchanged after drying.
Beverages, spices and pigments, milk, egg products, plant and vegetable extracts, pharmaceutical synthetic thermosensitive materials, polymers and resins, fragrances, blood products, pottery and superconductor biochemical products, dyes, soaps and detergents, food, adhesives, oxides, bone meal, and more.
1. RDSY spray dryer can meet the growing demand for experimental spray dryer in terms of safety, sanitation, flexibility and ease of operation;
2. Use RDSY spray dryer to dry a small amount of solution, suspension and emulsion into representative powder samples. The test results obtained from the test will provide important information for determining process data;
3. RDSY spray dryer can be equipped with pneumatic reversible top cover, which is easy to operate and thoroughly cleaned;
4. Three selectable atomization systems ensure that you obtain the ideal solution;
5. Rotary atomizer: installed at the center of the top of the drying tower, electrically driven atomization wheel;
6. Parallel flow dual fluid nozzle: placed at the center of the top of the drying tower, using compressed air to achieve atomization;
7. Fountain type dual fluid nozzle: it is placed on the cone of the drying tower body, and spray upward, using compressed air to complete the atomization;
8. Special design is required for handling materials with flammable solvents and explosive powders.
