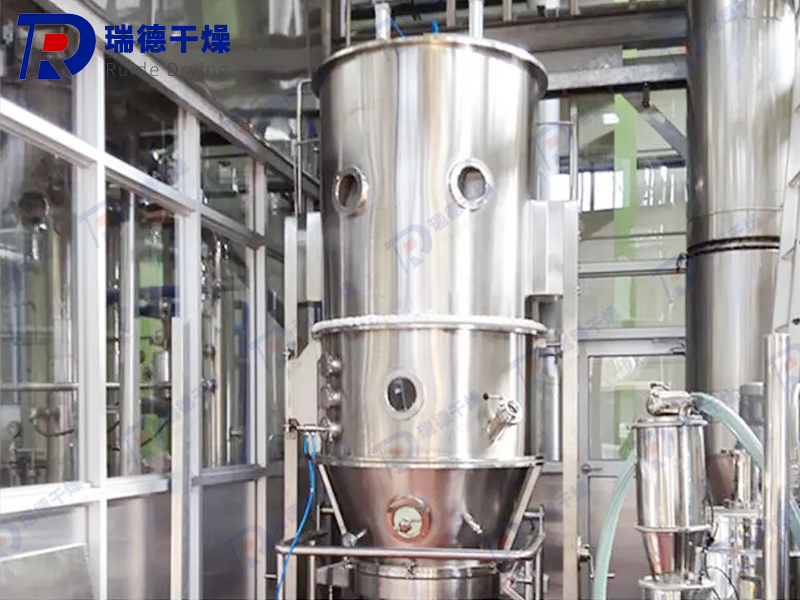

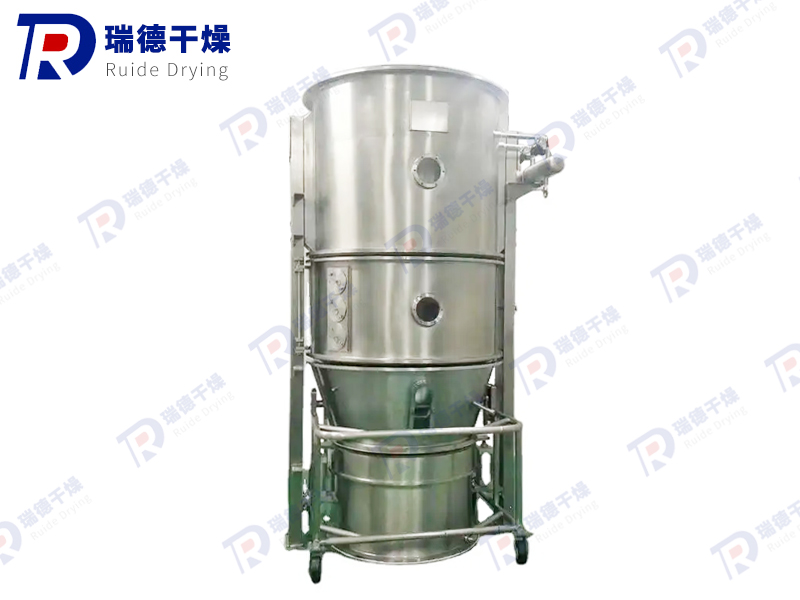

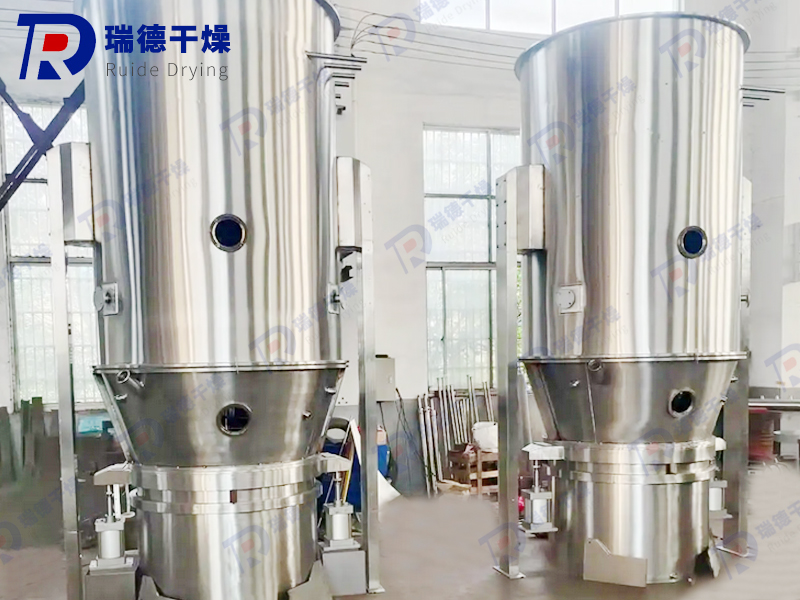

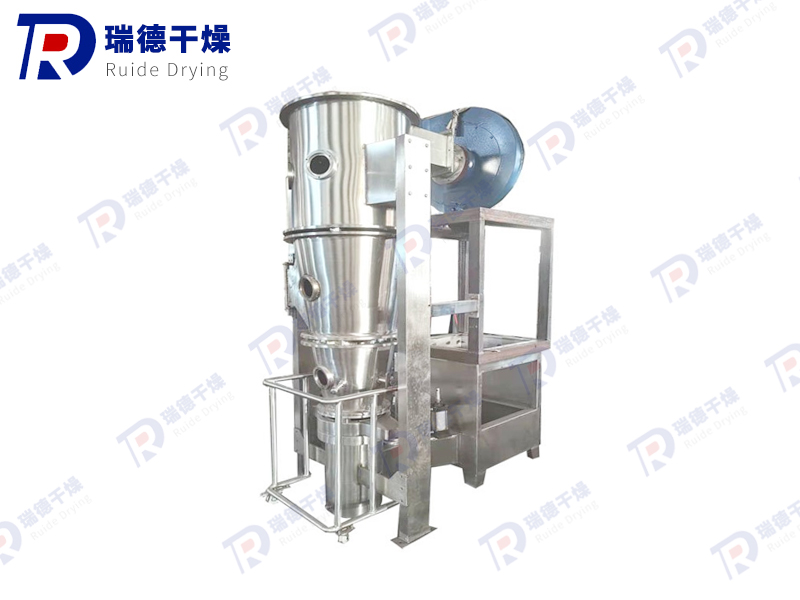

The FG series vertical boiling dryer is a new type of boiling drying equipment developed for GMP pharmaceutical engineering. It can be used in conjunction with swing pellet machines or wet granulation machines. It has a wider fluidization range than the traditional horizontal XF series horizontal boiling bed and a speed 10-20 times that of a general hot air circulation oven. Mainly used for drying powder or granular materials in industries such as pharmaceuticals, food, and chemicals.
1. Fluidized drying, fast heat and mass transfer
2. Operate under closed negative pressure without dust flying
3. Using anti-static filter materials for safe operation
4, the equipment has no dead Angle, cleaning thoroughly, no cross contamination, according to the needs of special materials, can increase the agitator, negative pressure feeding system
5. Meet GMP regulatory requirements
6.Compared with the GFG series boiling dryer, it has a larger fluidization space
This machine is mainly suitable for drying powder or granular materials in industries such as pharmaceuticals, food, and chemicals.

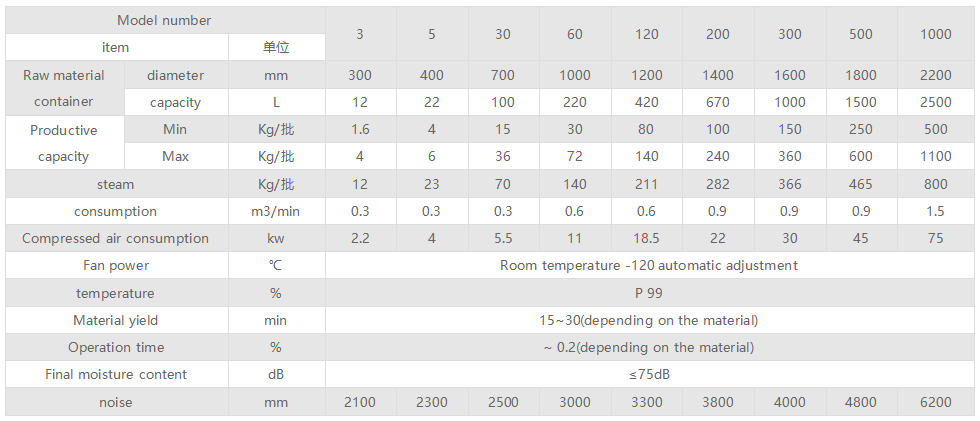

Note: Some parameters may be adjusted according to different materials during design, and the design shall prevail.
