Crusher Equipment

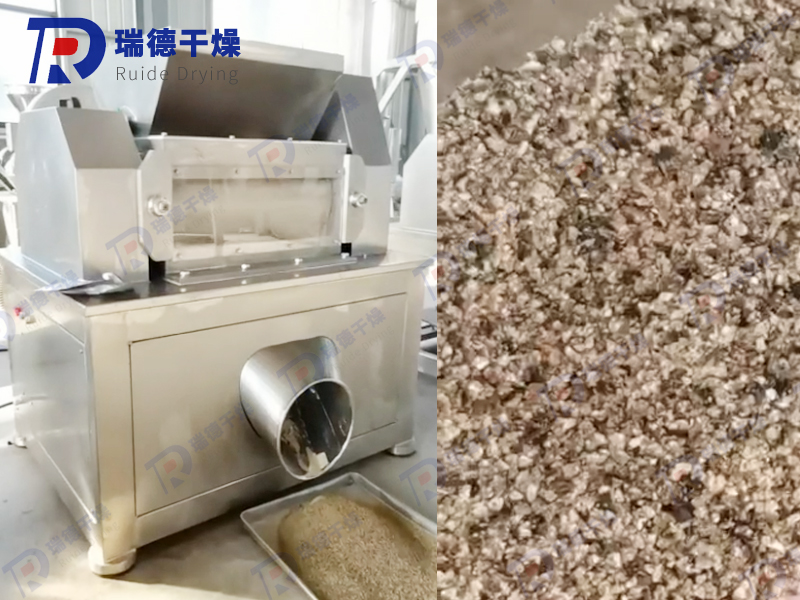

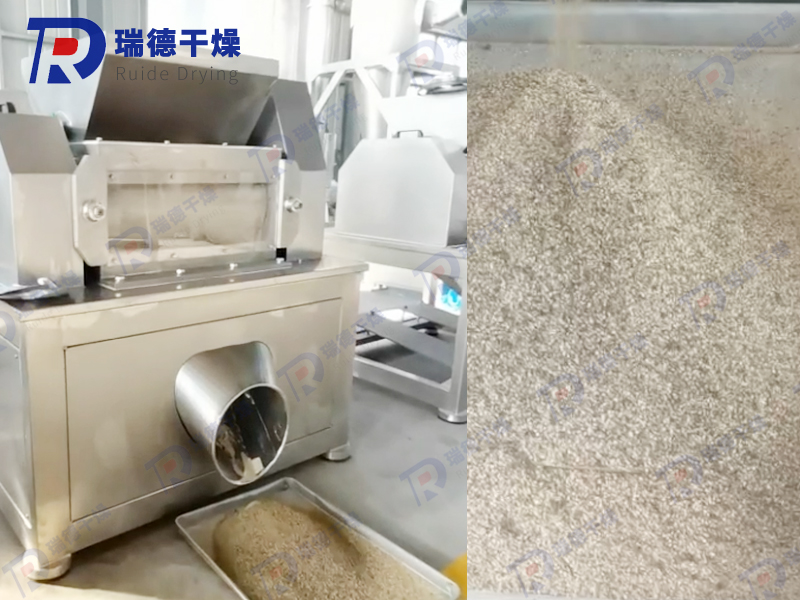

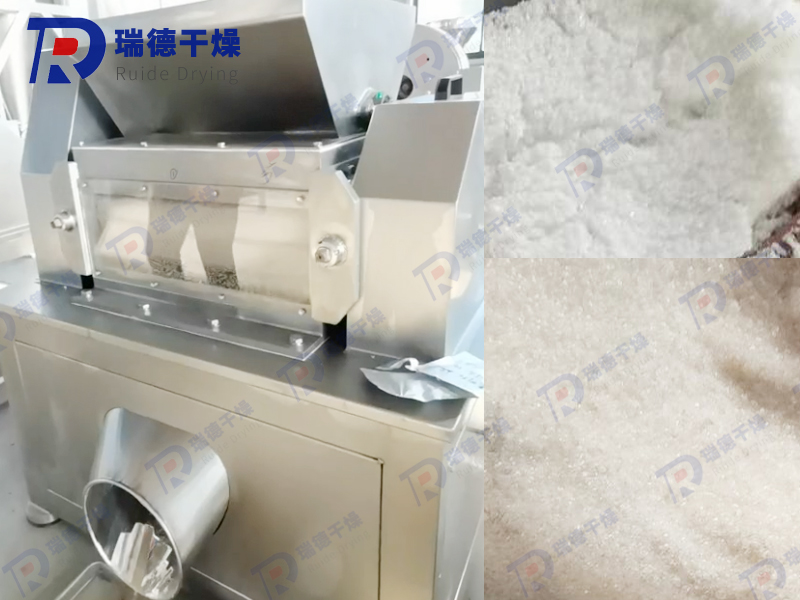

The double roll crusher is mainly used to crush particles below 5mm to a particle size of 10-40 mesh. It is suitable for processing various materials, including white sugar, Sichuan pepper, chicken essence, urea, compound fertilizer, water flushing fertilizer, water-soluble fertilizer, feed, etc.

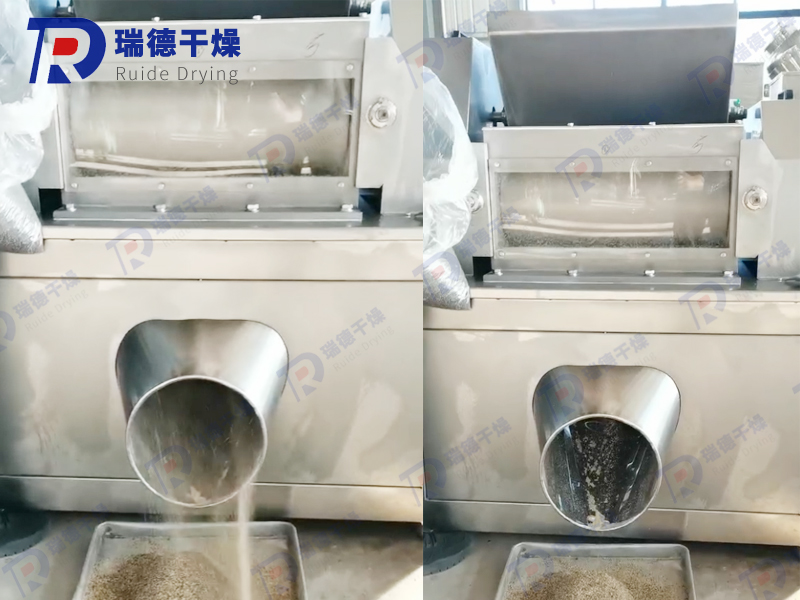

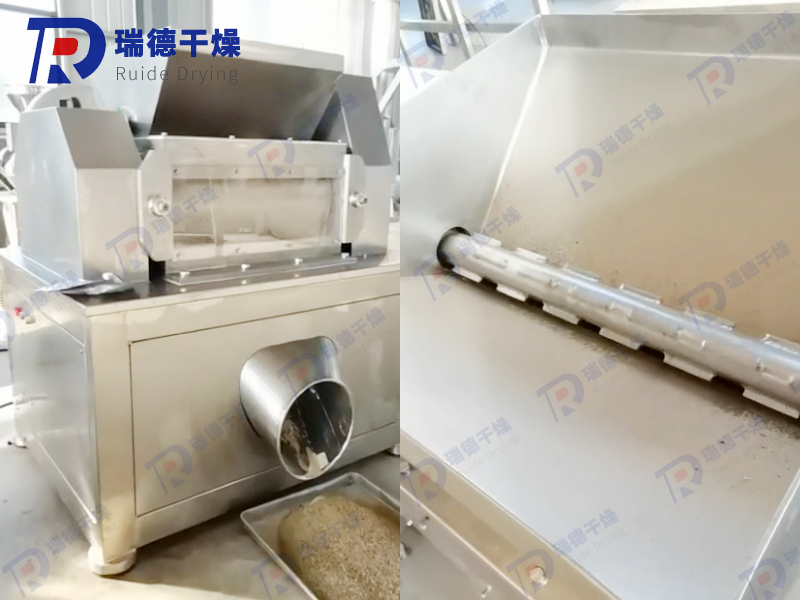

This device achieves material extrusion and grinding through two rolling rolls that rotate in opposite directions, thereby carrying out crushing operations. The material enters the crusher through the feeding port, and under the squeezing and grinding action of the rolling mill, the particles are crushed and ground into the required particle size. The crushed particles are discharged through the discharge port and can be further processed or used as needed.

Double roll pulverization has fast and adjustable pulverization speed, and the particle size is uniform; There will be no material adhering to the rolling mill rolls; Simple and reliable operation, no vulnerable parts; No dust is generated, therefore no additional dust removal equipment is required; Meanwhile, the device will not cause the material to generate heat. The feed inlet is also equipped with a broken block toothed roller, which can work continuously without clogging even with a small amount of clumping. According to customer requirements, the device can be made in two forms: fixed and mobile.

Product application

Applied in chemical, pharmaceutical, pesticide, dye, petroleum, metallurgy, building materials and other industries, including powder to powder (solid solid), powder to liquid (solid-liquid), liquid to liquid (liquid-liquid) mixing, reaction, drying, and cooling.
